Modulating Stand Alone Damper or Floating zone Control

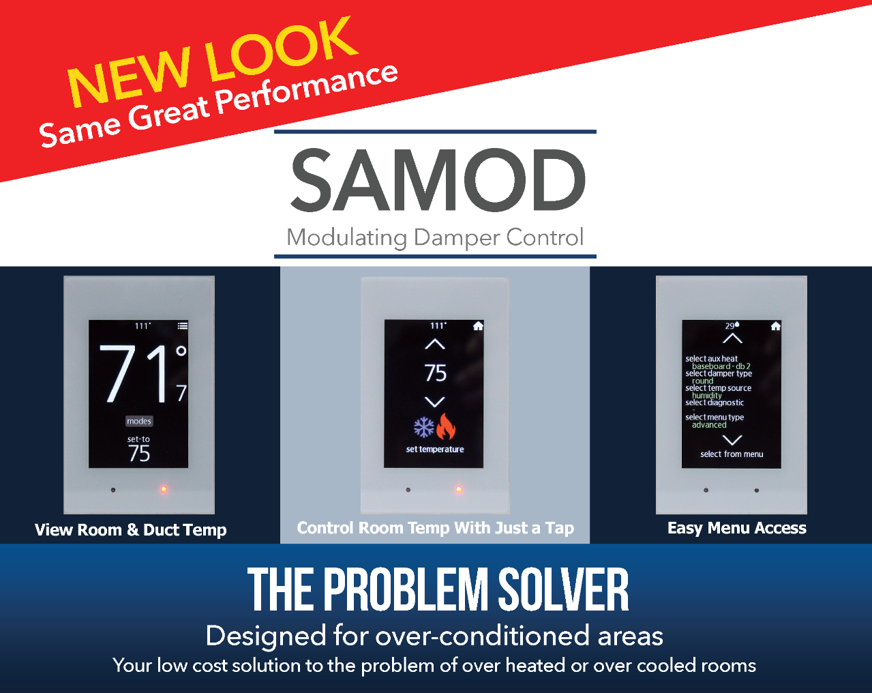

SAMOD –  your solution to overheated or overcooled rooms
SAMOD  a micro processor based auto changeover thermostat designed to control and modulate a stand alone Damper or D-Fuser in commercial applications where sub control is required
Designed for over conditioned areas, the thermostat senses the duct temperature and compares it to the heat / cool set point vs. room temperature and modulates the damper for the correct volume of air
Remote sensor capability is available and the SAMOD  will also control Auxiliary or supplemental heat sources and also may be accessed remotely over the Internet with any ZonexCommander DDC system
The thermostat includes a duct sensor installed upstream of the damper and sends the duct temperature to the thermostat via 1 – 18 GA.   2 conductor thermostat wire.
SAMOD includes auxiliary heat output.
  • STAND-ALONE (MODULATING DAMPER) THERMOSTAT
  • AUTO CHANGE OVER OPERATION
  • AUXILIARY HEAT CONTROL
  • REMOTE SENSOR ABILITY
  • OPTIONAL DDC CONTROL

Number of Zones 1

System Data    Commercial Stand Alone Modulating Damper
Auto Changeover    Yes
Capacity Control    N/A
Heat Pump or Gas/Electric N/A
Wire Configuration    4-Wire
Damper Configuration Round & Rectangle or D-Fuser
Damper Movement    Fully Modulating
Damper Capacity    1.75 SP
Number of Cool Stages    N/A
Number of Heat Stages N/A
Remote Sensor Capability Yes
Remote Internet Communications    Yes
